Tutorial 4: Multivariable Regression

The problem

You are characterising the heat output of an electronic component. Physics tells you it depends on two variables: the drive current I (measured with a current probe) and the ambient temperature T (set by a climate chamber — effectively exact):

P = a·I² + b·T + c

The current probe has a small but non-negligible error (σ_I = 0.05 A). The chamber temperature is controlled precisely so σ_T = 0. Both P and I carry measurement noise, while T does not.

Goal: fit the three parameters a, b, c and correctly propagate the error on the current measurement into the parameter uncertainties.

Key point: zero-error features

MCUP supports multivariable inputs by accepting X with shape (n, k) and x_err with the same shape. Set x_err[:, j] = 0 for any feature that is known exactly — the solver will not perturb that column during Monte Carlo sampling and will exclude it from the cost function in DemingRegressor.

Setup

import numpy as np
from mcup import WeightedRegressor, XYWeightedRegressor

def heat_model(x, p):
    """P = p[0]*I^2 + p[1]*T + p[2]   (x = [I, T])"""
    I, T = x[0], x[1]
    return p[0] * I**2 + p[1] * T + p[2]

Generate synthetic data (60 points, true parameters a=1.5, b=0.3, c=-2.0):

rng = np.random.default_rng(42)
N = 60

current   = rng.uniform(0.5, 4.0, N)          # measured variable
temperature = np.linspace(10.0, 40.0, N)      # controlled variable

# Stack into (N, 2) design matrix
X_true = np.column_stack([current, temperature])

# Error on current; temperature is exact
x_err = np.column_stack([0.05 * np.ones(N), np.zeros(N)])
y_err = 0.5 * np.ones(N)

TRUE_PARAMS = np.array([1.5, 0.3, -2.0])
y_true = np.array([heat_model(X_true[i], TRUE_PARAMS) for i in range(N)])

# Observed (noisy) data
X_obs = X_true + rng.normal(0, 1, X_true.shape) * x_err
y_obs = y_true + rng.normal(0, y_err)

Fit 1: WeightedRegressor — y errors only

Use this when the current error is negligible or you want a quick baseline.

est_y = WeightedRegressor(heat_model, method="analytical")
est_y.fit(X_obs, y_obs, y_err=y_err, p0=[1.0, 0.5, 0.0])

print(f"a = {est_y.params_[0]:.3f} ± {est_y.params_std_[0]:.3f}")
print(f"b = {est_y.params_[1]:.3f} ± {est_y.params_std_[1]:.3f}")
print(f"c = {est_y.params_[2]:.3f} ± {est_y.params_std_[2]:.3f}")

a = 1.522 ± 0.015
b = 0.285 ± 0.007
c = -1.718 ± 0.234

Fit 2: XYWeightedRegressor — x and y errors, mixed

When current error σ_I = 0.05 A is non-negligible (especially for a·I² which amplifies it at high I), propagate the current uncertainty into the effective y-variance via the analytical gradient.

est_xy = XYWeightedRegressor(heat_model, method="analytical")
est_xy.fit(X_obs, y_obs, x_err=x_err, y_err=y_err, p0=[1.0, 0.5, 0.0])

print(f"a = {est_xy.params_[0]:.3f} ± {est_xy.params_std_[0]:.3f}")
print(f"b = {est_xy.params_[1]:.3f} ± {est_xy.params_std_[1]:.3f}")
print(f"c = {est_xy.params_[2]:.3f} ± {est_xy.params_std_[2]:.3f}")

a = 1.521 ± 0.019
b = 0.288 ± 0.009
c = -1.803 ± 0.278

The uncertainty on a grows from ±0.015 to ±0.019 because the quadratic term a·I² propagates the current error: σ_P_from_I = |∂P/∂I| · σ_I = |2·a·I| · 0.05. At I = 4 A this is |2 × 1.5 × 4| × 0.05 = 0.6 W — comparable to σ_y = 0.5 W.

Results

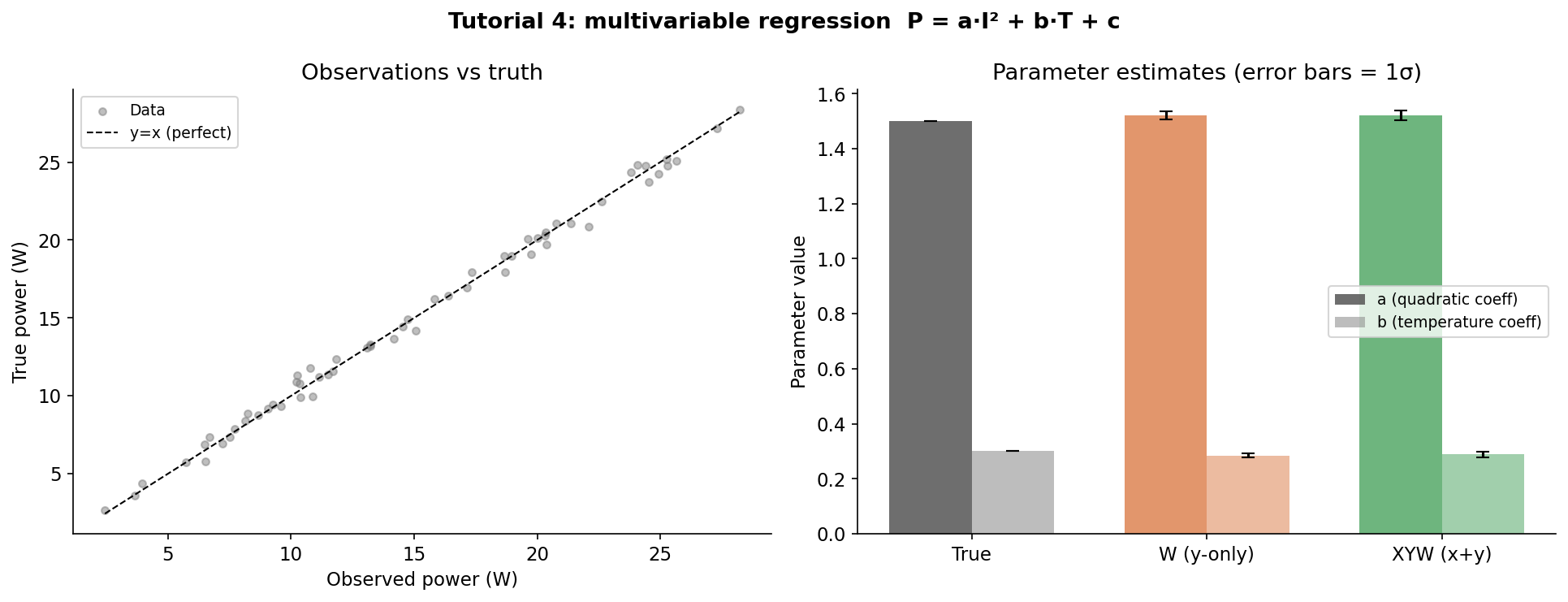

Multivariable regression figure

Parameter True W (y-only) XYW (x+y)
a (quadratic) 1.500 1.522 ± 0.015 1.521 ± 0.019
b (temperature) 0.300 0.285 ± 0.007 0.288 ± 0.009
c (offset) -2.000 -1.718 ± 0.234 -1.803 ± 0.278

Both methods recover the true parameters well. The key difference is in the reported uncertainties: XYWeightedRegressor gives larger (and more honest) error bars on parameters that are sensitive to the current error, because it accounts for how σ_I propagates through the nonlinear model.

Monte Carlo variant

The analytical method uses the gradient at the fitted parameters. For strongly nonlinear models, the Monte Carlo method samples the full error distribution:

est_mc = XYWeightedRegressor(heat_model, method="mc", n_iter=500)
est_mc.fit(X_obs, y_obs, x_err=x_err, y_err=y_err, p0=[1.0, 0.5, 0.0])

Each MC iteration:

  1. Draws I_s = I_obs + N(0, σ_I) for the current column only (temperature column gets zero noise because x_err[:, 1] = 0)
  2. Draws P_s = P_obs + N(0, σ_P)
  3. Fits the model to the perturbed sample
  4. Accumulates statistics with Welford's algorithm

The final params_std_ comes from the spread of fitted parameters across all iterations.

DemingRegressor with multivariable X

For cases where you want the full joint optimisation over latent true current values:

from mcup import DemingRegressor

est_dem = DemingRegressor(heat_model, method="analytical")
est_dem.fit(X_obs, y_obs, x_err=x_err, y_err=y_err, p0=[1.0, 0.5, 0.0])

Internally MCUP pins the temperature column (x_err = 0) to its observed values and only optimises latent current values — avoiding division by zero in the Deming cost function.

When to pass x_err with zeros

Situation What to do
Temperature set by controller; current measured x_err = [[σ_I, 0], [σ_I, 0], ...]
Both variables measured, independent uncertainties x_err = [[σ_x1, σ_x2], ...]
All variables exact (only output noise) Use WeightedRegressor; no x_err needed
Zero y_err would also divide by zero Provide a small floor: y_err = np.maximum(y_err, 1e-6)
